Standard Type, High Power Type, Ultra Power Type are available.
Inductance Range:0.35～7.1μH (Standard type ); 0.5～10.0μH
(Low D.C.R type);0.2uH～4.0μH (High Power type).
Saturation Current range: 2.6～12.0A(Low D.C.R type); 3.8～18.4A
(Standard type ) ;7.2～32.0A (High Power type).
Temperature rise current 6.5～18.0A.
In addition to the standards versions shown here,
custom inductors are also available to meet your exact requirements.
Feature& Application
Mn-Zn core used, Flat wire used.
Super high current Inductors, ideally used in portable computer CPU power supply.
RoHS Compliance and Halogen free.

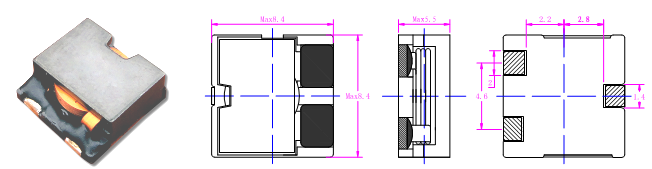

Dimensions (mm)
Pad Layout(mm) ◆ Schematics (Bottom)
Characteristic description
TAPE
INDUCTORS
(uH)
Test Frequency
DCR
(mΩ)
Saturation Current(A)
Temperature
Rise Current(A)
Test environment
SER0805
0.20~10
100KHz
2.50~15
32~2.6
18.0~6.50
20℃
a、Saturation Current: The DC current at which the inductance decreases to 75% of
it's nominal value.
b、Temperature rise current:The DC current at which the temperature rise is
△t＝40℃.(Ta＝20℃)
In addition to the standards versions shown here,
Feature& Application
